Reinforcement : High Resistance Textile Reinforcement
Top Layer : Thermo-Rubber Mix (PVC+NBR)

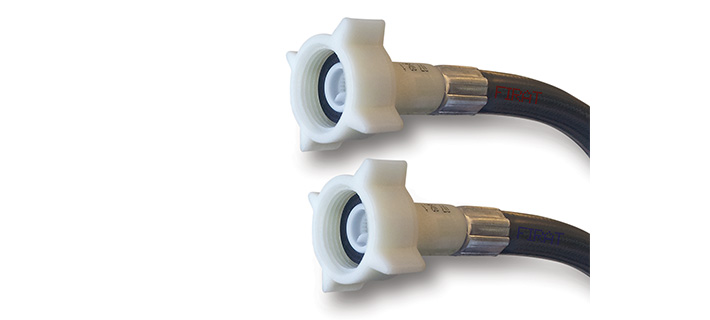

Specifications : Two types as cold water inlet and hot water inlet hose. The operation temperature of cold water inlet hoses is maximum 25°C and hot water inlet hoses is maximum 90°C.
Application Areas : Mains water connections of washers and dishwashers.
Inside Diameter
Outside Diameter
Burst Pressure
Bombing Pressure
Height
mm
10
17
10 bar
min.60 bar
1,5 m
10
17
10 bar
min.60 bar
2 m
10
17
10 bar
min.60 bar
2,5 m
10
17
10 bar
min.60 bar
3 m
10
17
10 bar
min.60 bar
4 m
10
17
10 bar
min.60 bar
5 m

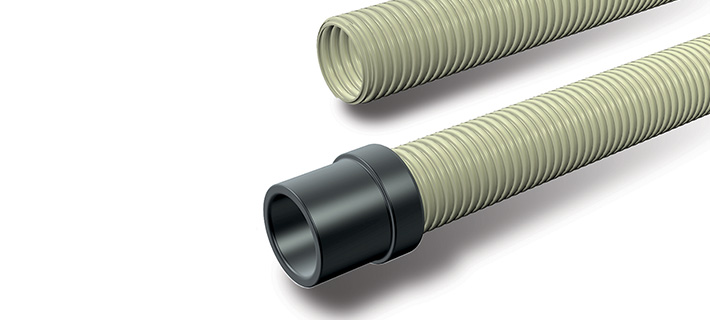

ÇAMAŞIR VE BULAŞIK MAKİNESİ SU TAHLİYE HORTUMU
Operating Temperature : -5°C / +60°C
Application Areas : Water discharge of washers and dishwashers.
